Working Principle of Turbocharger

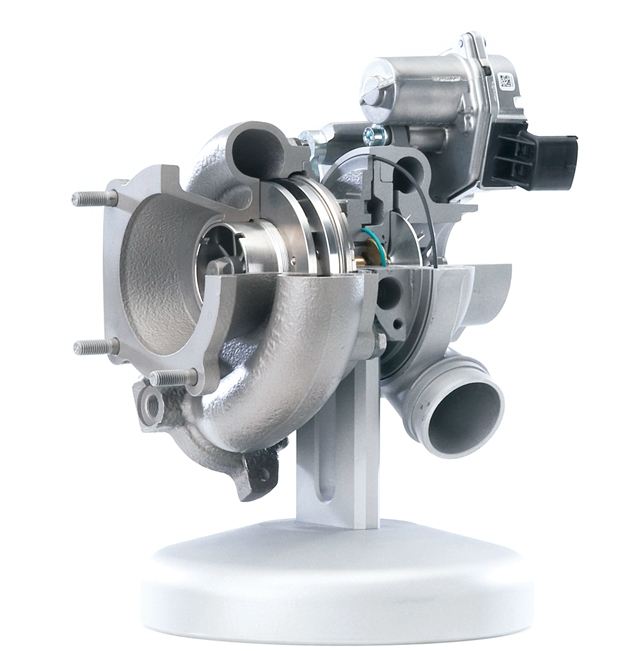

A turbocharger is a high-efficiency air compressor that boosts engine power by compressing intake air. Its core working principle is based on the recovery and utilization of engine exhaust energy.
Firstly, the high-temperature and high-pressure exhaust gases emitted by the engine are directed to the turbine section of the turbocharger. These exhaust gases exert force on the turbine blades, causing them to rotate. The rotational speed of the turbine increases as the engine RPM rises, effectively converting the exhaust energy.
The turbine is connected to the compressor section via a common shaft. Therefore, when the turbine rotates, it directly drives the compressor section to rotate. The compressor's function is to compress the air passing through the air filter, increasing its pressure and density. This allows more air to be forced into the engine's cylinders.
As the compressor compresses the air to higher pressure levels, the density of the air also increases. This permits the engine to burn more fuel in each working cycle, thereby releasing more energy and increasing the engine's power output.
To ensure the performance and reliability of the turbocharger, the compressor's operation is limited to a certain pressure ratio range. This helps avoid excessive surge (i.e., compressor choking) and flow restriction (i.e., compressor stall), maintaining optimal performance and reliability.
Furthermore, turbochargers are typically equipped with a wastegate regulation system. The wastegate is a valve that can direct exhaust gases to bypass the turbine, thereby controlling boost pressure and preventing overboosting. This contributes to the safe operation of the engine.
Advanced turbochargers may also utilize variable geometry turbine technology. This technology allows for the adjustment of the turbine inlet's cross-sectional area to achieve optimal performance across different engine RPM ranges.
In some high-performance applications, twin-turbocharger configurations may be used. These turbochargers can be arranged in parallel (serving a set of cylinders each) or in series (one stage boosting into another) to further enhance power and responsiveness.
In summary, a turbocharger recovers and utilizes engine exhaust energy to compress air to higher pressures and densities, allowing the engine to burn more fuel and produce higher power outputs. This working principle makes the turbocharger a crucial component for enhancing engine performance and efficiency.
